Model Code: Q31-8K

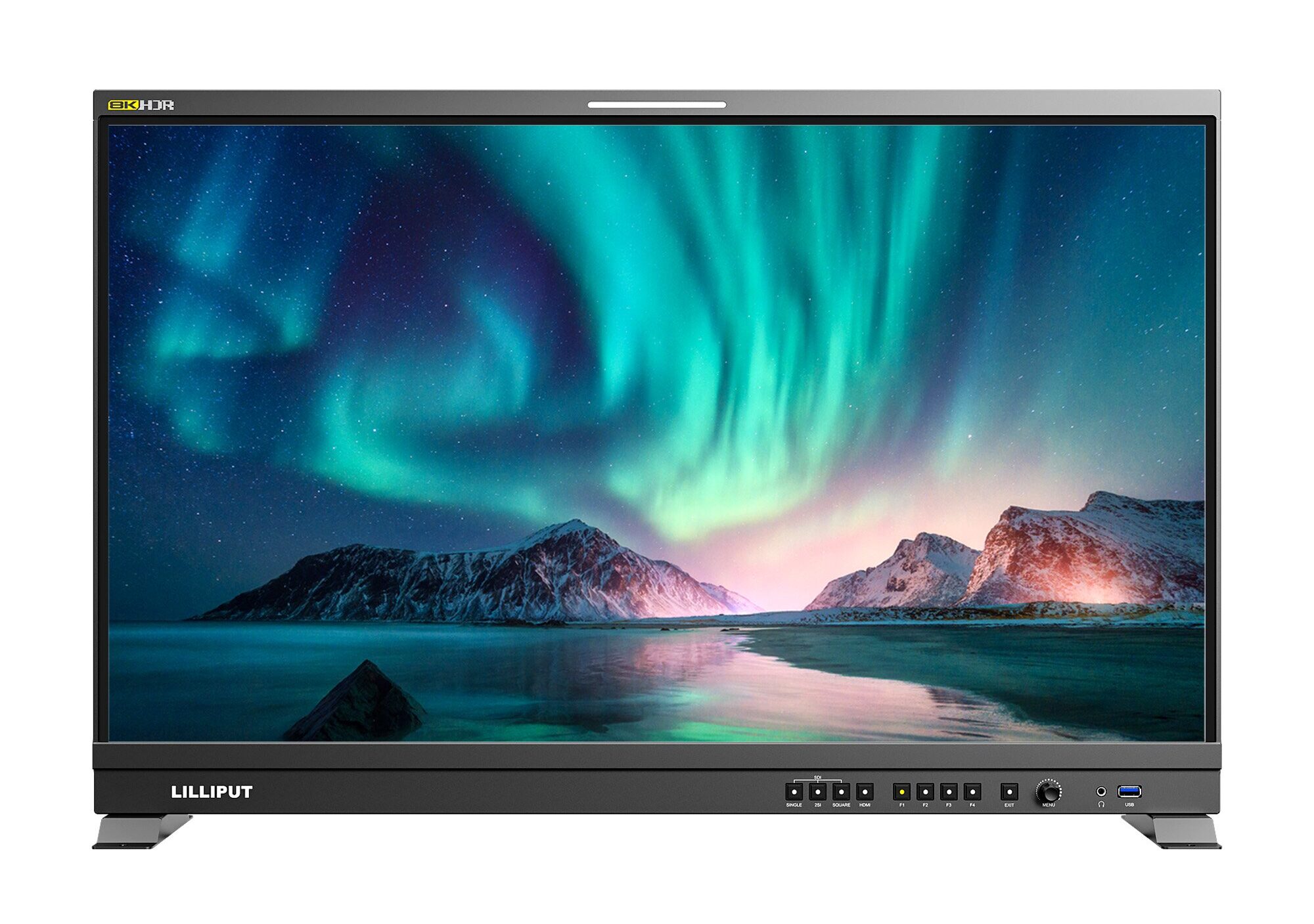

31.5 inch 12G-SDI Production Studio Monitor
Fits into your 8K production video workflows with 4x 12G-SDI video inputs | 31.5" native 4K display with 350 nits brightness | Quad Split Multi-View and Remote Control
Get a Quote
Get a Quote
Product Enquiry
Product Enquiry
Specification
Display
Diagonal Size
31.5"
Aspect Ratio
16:9
Native Resolution
3840x2160
Backlight Technology
LED
Brightness
350 cd/m²
Contrast
1300:1
Viewing Angle
178°/178° (H/V)
HDR
HLG,
ST 2084 300/1000/10000
ST 2084 300/1000/10000
Supported Log Formats
ArriLog,
CLog,
NLog,
SLog2,
SLog3,
User-Defined
CLog,
NLog,
SLog2,
SLog3,
User-Defined
Colour Depth
8-bit

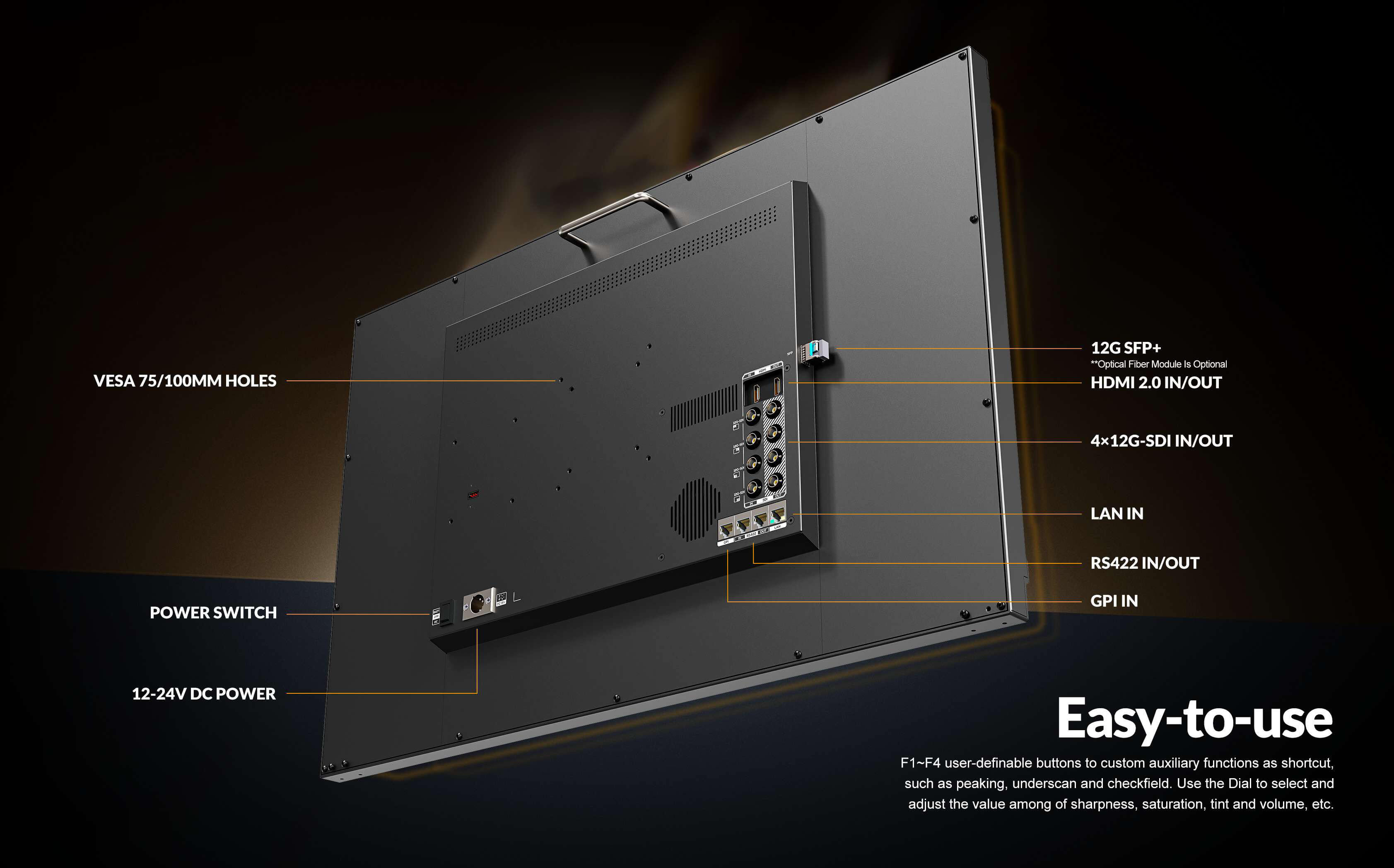

Connections
Video Inputs
HDMI
1x HDMI 2.0
SDI
4x 12G-SDI,

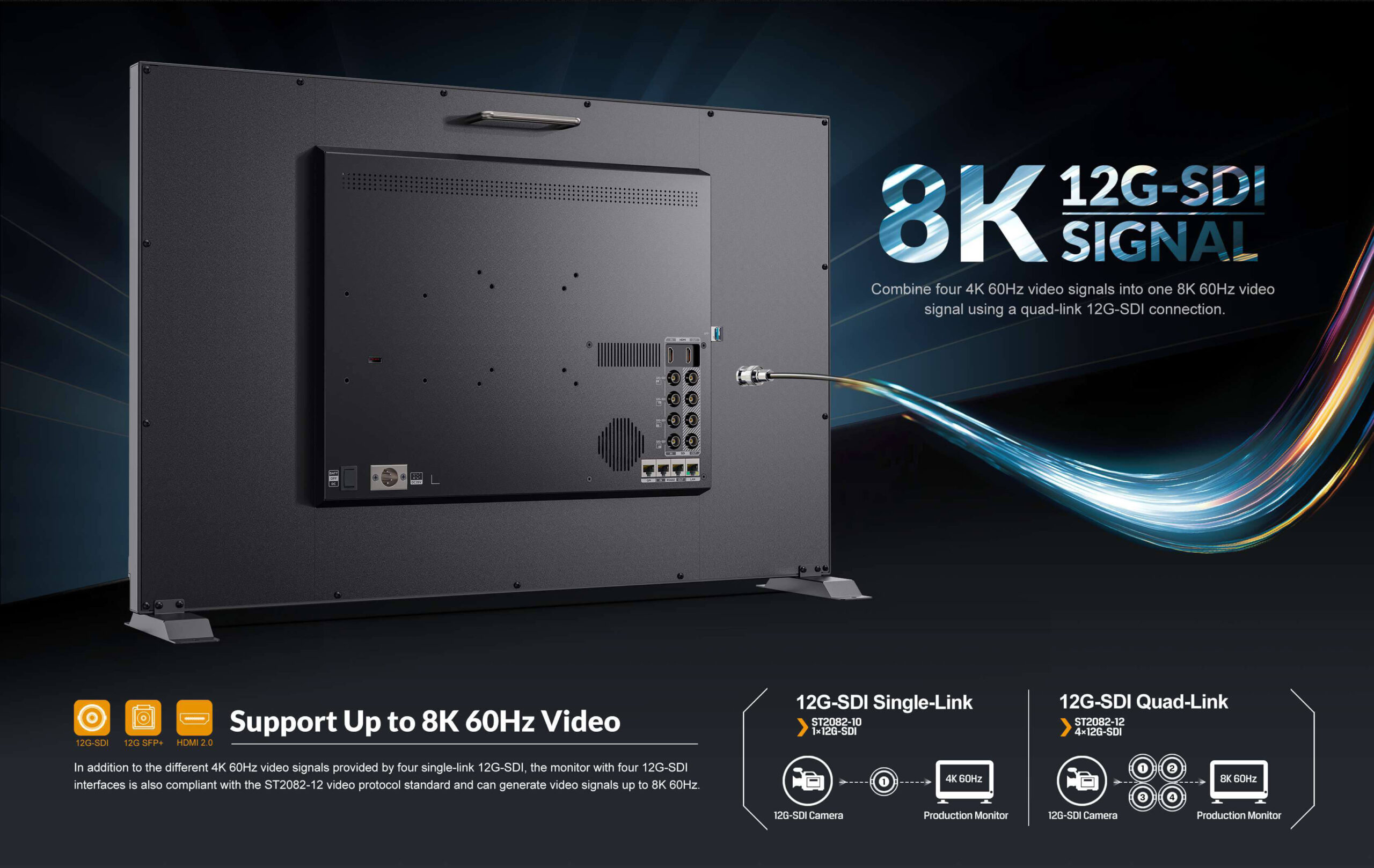

Single-Link, Dual-Link and Quad-Link
Single-Link, Dual-Link and Quad-Link
SFP
1x 12G SFP+ (Fiber module optional)
Video Loop Outputs
HDMI
1x HDMI 2.0
SDI
4x 12G-SDI
Audio Inputs/Outputs
HDMI
8ch 24-bit
SDI
16ch 48kHz 24-bit
Ear Jack
3.5mm
Standards
HDMI
1080i50/60,
1080p24/25/30/50/60,
2160p24/25/30/50/60,
720p50/60
1080p24/25/30/50/60,
2160p24/25/30/50/60,
720p50/60
SDI
1080i50/60,
1080p24/25/30/50/60,
1080pSF24/25/30,
2160p24/25/30/50/60,
4320p24/25/30/50/60,
720p50/60
1080p24/25/30/50/60,
1080pSF24/25/30,
2160p24/25/30/50/60,
4320p24/25/30/50/60,
720p50/60
SFP
1080i50/60,
1080p24/25/30/50/60,
1080pSF24/25/30,
2160p24/25/30/50/60,
720p50/60
1080p24/25/30/50/60,
1080pSF24/25/30,
2160p24/25/30/50/60,
720p50/60
Colour Space
BT.2020,
DCI-P3,
Rec.709,
SMPTE-C
DCI-P3,
Rec.709,
SMPTE-C
Look Up Table Support
3D LUT (.cube format)
Scopes
Video Analysis
Aspect and Centre Markers,
Check Field,
Colour Bar,
Exposure,
False Colour,
Focus Peaking,
Freeze Image,
H/V Delay,
Histogram,
Pixel Zoom,
Pixel-to-pixel,
Vectorscope,
Waveform
Check Field,
Colour Bar,
Exposure,
False Colour,
Focus Peaking,
Freeze Image,
H/V Delay,
Histogram,
Pixel Zoom,
Pixel-to-pixel,
Vectorscope,
Waveform
Audio Analysis
Audio Vector,
Level Meter
Level Meter
Operational Features
Menu Control
Built-in Menu Dial
Function Buttons
4x Customisable
Remote Control
GPI,
LAN,
RS422
LAN,
RS422
Tally Control
GPI,
LAN
LAN
View Modes
Horizontal/Vertical Flip,

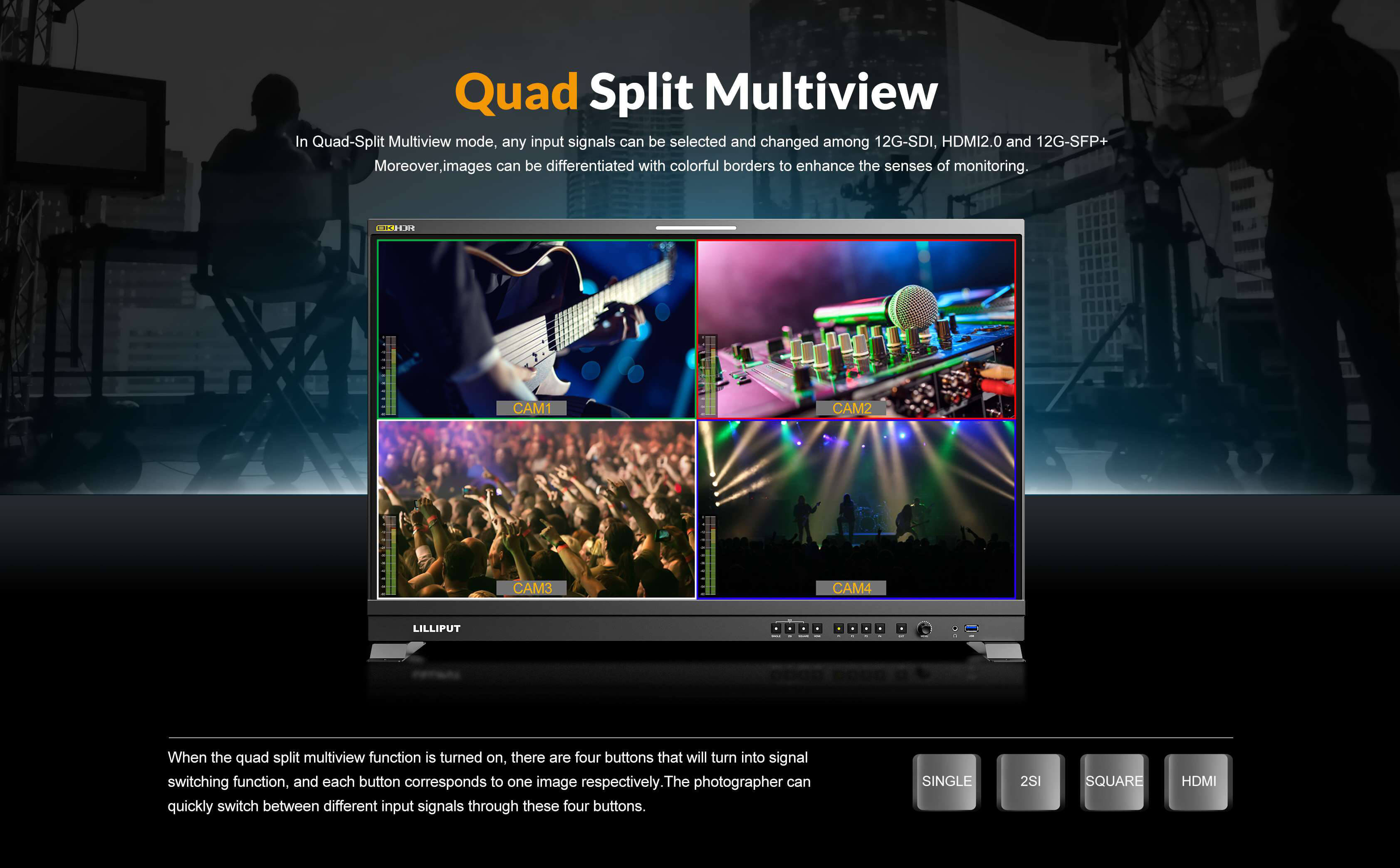

Quad-Split
Quad-Split
UMD Control
Internal Temperature Display,
Signal Input,
User-Defined Data
Signal Input,
User-Defined Data
Timecode
LTC,
VITC
VITC
Power
Input Voltage
DC 12-24V
Power Consumption
≤65W (15V)
Environmental
Operating Temperature
0℃~50℃
Storage Temperature
-20℃~60℃
Mechanical

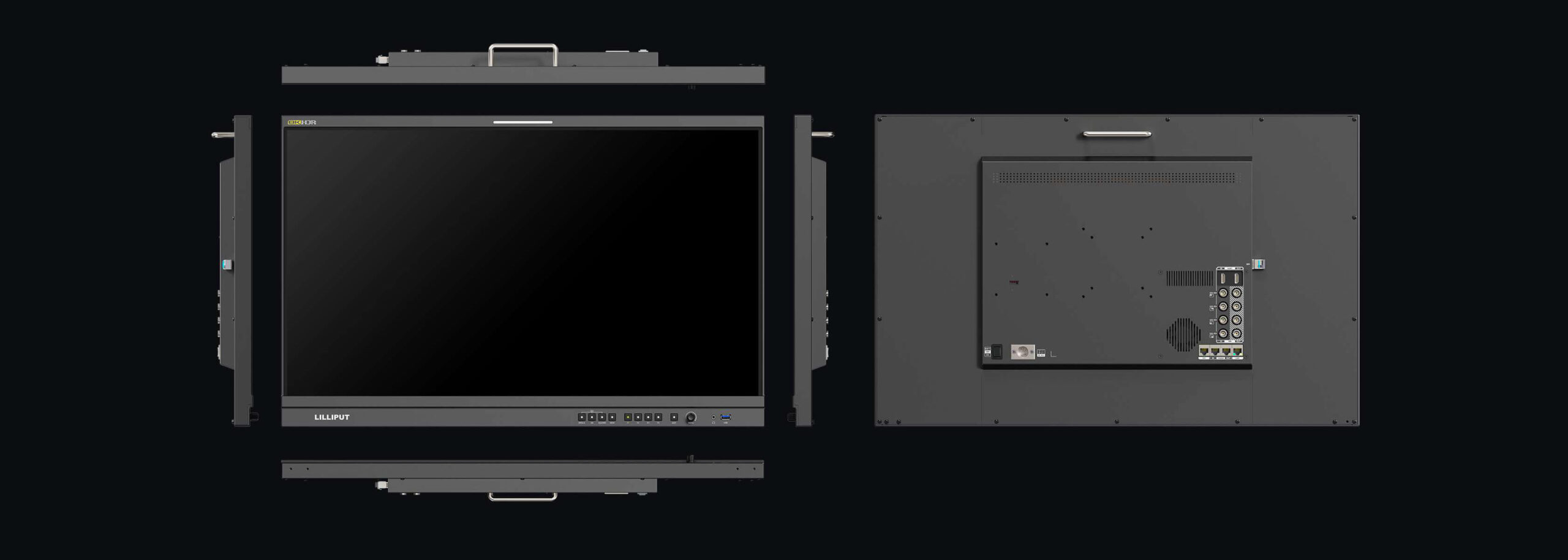

Dimensions
717.5x461.7x47.4 mm
Weight
13.0 kg
Compliance
Safety Conformity
CE,
FCC,
UKCA
FCC,
UKCA
Mounting
Wall Mount
VESA 100,
VESA 75
VESA 75
Base Brackets
Detachable feet included
Accessories
Included Accessories
15V DC Adapter,
Base Brackets,
USB Flash Disk
Base Brackets,
USB Flash Disk
Optional Accessories
SFP Optical Fiber Module
Included Accessories
Product Downloads
Similar Products
| Features |
 Q31-8K (Current) |
 Q43-8K |
|---|---|---|
| Display | ||
|
Diagonal Size
|
31.5" | 43" |
|
Native Resolution
|
3840x2160 | 3840x2160 |
|
Aspect Ratio
|
16:9 | 16:9 |
|
Brightness
|
350 cd/m² | 400 cd/m² |
|
Contrast
|
1300:1 | 1200:1 |
| Input Connectivity | ||
|
SDI
|
4x 12G-SDI, Single-Link, Dual-Link and Quad-Link |
4x 12G-SDI, Single-Link, Dual-Link and Quad-Link |
|
HDMI
|
1x HDMI 2.0 | 1x HDMI 2.0 |
|
SFP
|
1x 12G SFP+ (Fiber module optional) | 1x 12G SFP+ (Fiber module optional) |
| Output Connectivity | ||
|
SDI
|
4x 12G-SDI | 4x 12G-SDI |
|
HDMI
|
1x HDMI 2.0 | 1x HDMI 2.0 |
| Power | ||
|
Input Voltage
|
DC 12-24V | DC 24V |
|
Power Consumption
|
≤65W (15V) | ≤77W (24V) |
| Mounting | ||
|
Wall Mount
|
VESA 100, VESA 75 |
400x400 mm |
